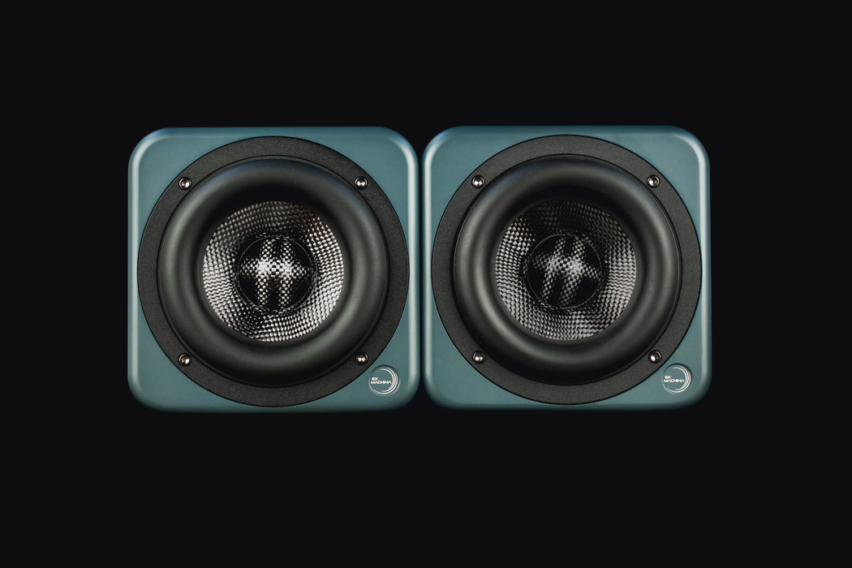

Compact 16cm subwoofer pair designed exclusively for Selene integration. Extends system response to 50Hz linear (F6 at 35Hz) via zero-phase LR4 crossover at 150Hz. 14.7mm Xmax per direction, 98dB continuous @ 50Hz. Powered directly by Selene’s EXCore.
Transforms Selene from F6 at 80Hz to F6 at 35Hz, linear response extends to 50Hz. Full-range monitoring capability from a compact system – the foundation film, music, and immersive audio work demands.

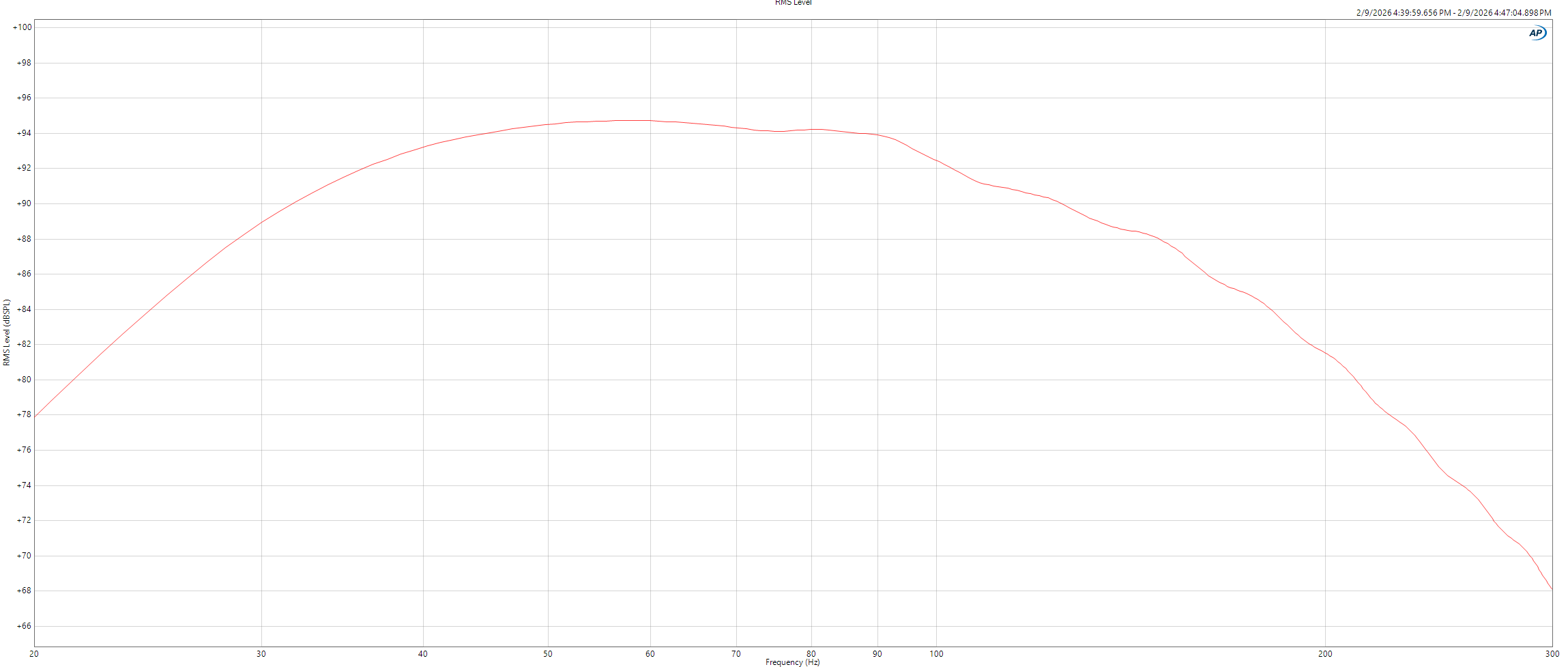

14.7mm of linear excursion in each direction from a 5.5″ driver. More throw than the 9″ drivers in our previous generation Pulsars – 98dB continuous at 50Hz from a 6.5″ cube enclosure.
Powered directly by Selene’s EXCore with coordinated DSP calibration. No external amplifiers, no additional processing, no phase misalignment – Poseidon integrates as if it was always part of the design. Because it was.
Adds full-range capability without the space requirements of traditional monitoring systems. Compact enough for desktops and small rooms, capable enough for professional decision-making.
Proprietary, in house calibration code completely flattens frequency, phase and impulse response.

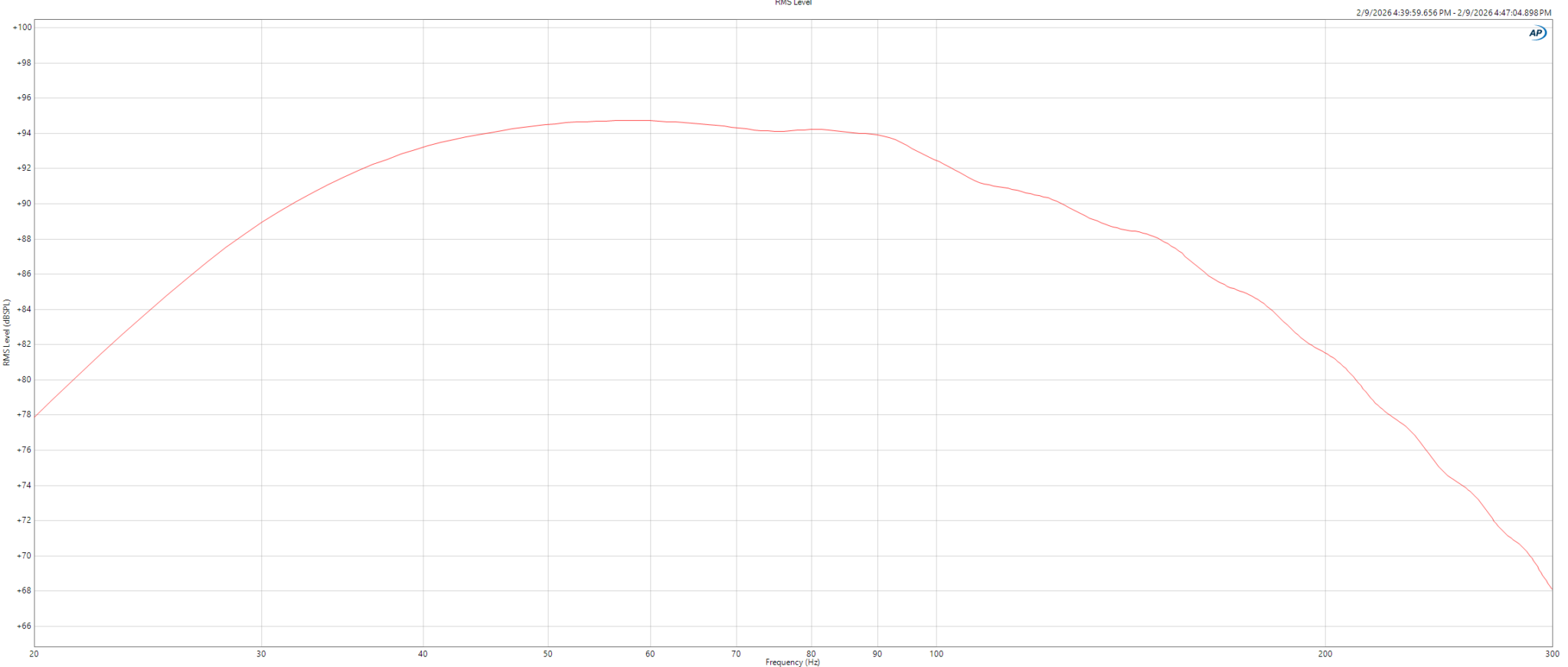

Frequency Response (30cm cal position)
Phase Response

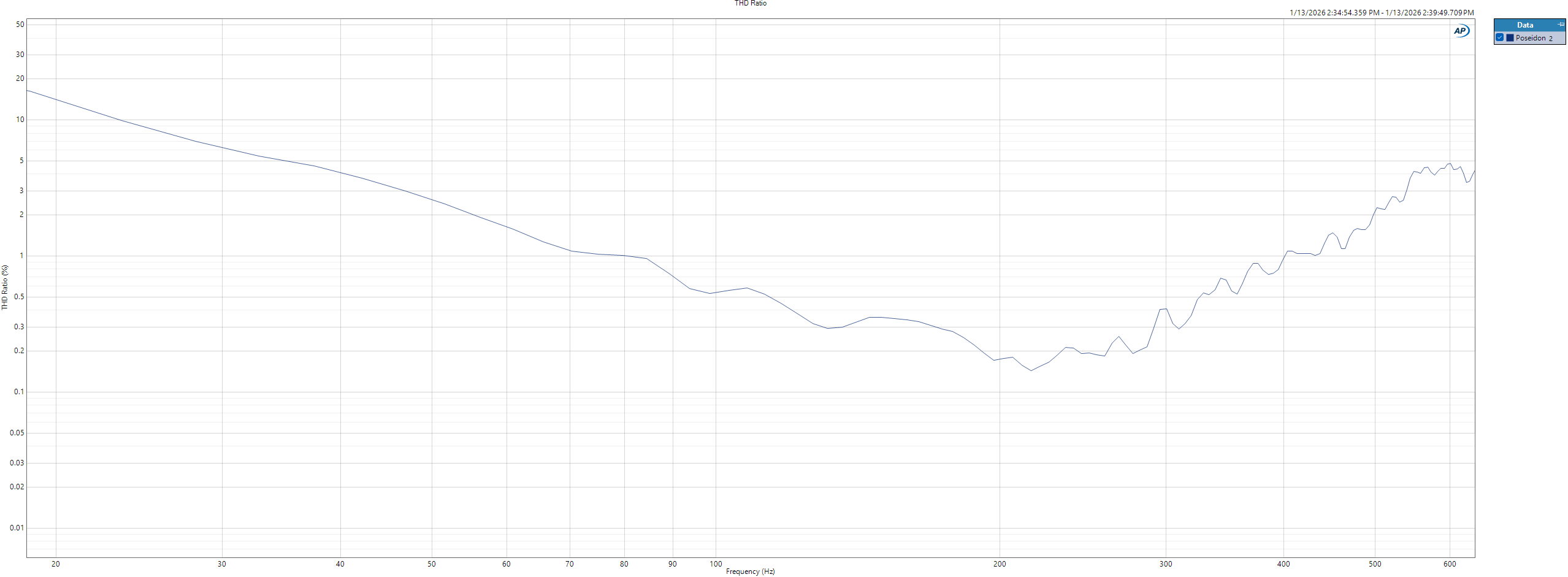

THD Ratio (94db at cal position)
TECHNICAL FOUNDATION
Poseidon completes the Selene system by providing dedicated low-frequency extension that Selene’s compact form factor can’t physically deliver. Designed from the outset as part of a modular 3-way architecture, Poseidon integrates with Selene’s EXCore amplification and DSP to create a cohesive monitoring system.

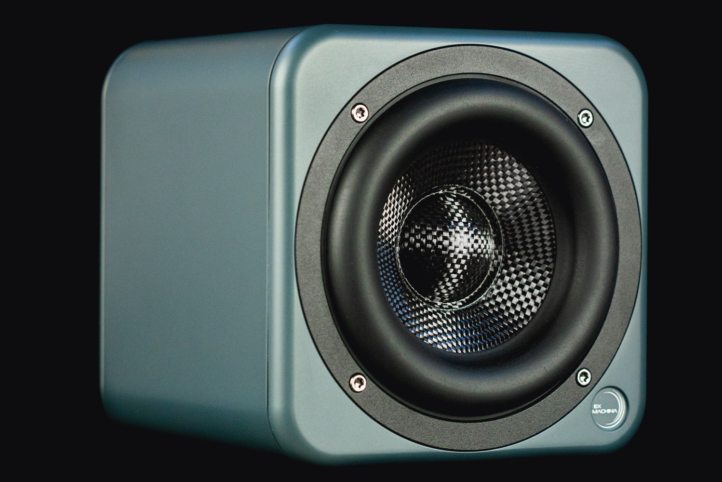

Cabinet Engineering
Poseidon uses the same aluminum extrusion approach as Selene – 7mm flat-wall construction with 19mm corner ribbing, both front and rear baffles are 12mm solid aluminum, all compressed together with series gaskets. The 6.5″ cube form factor matches Selene’s dimensions for visual and acoustic consistency.
Despite the compact enclosure, the cabinet is engineered for the substantial excursion demands of low-frequency reproduction. The rigid aluminum construction prevents cabinet flexing even when the driver is moving through its full 14.7mm of linear travel in each direction.

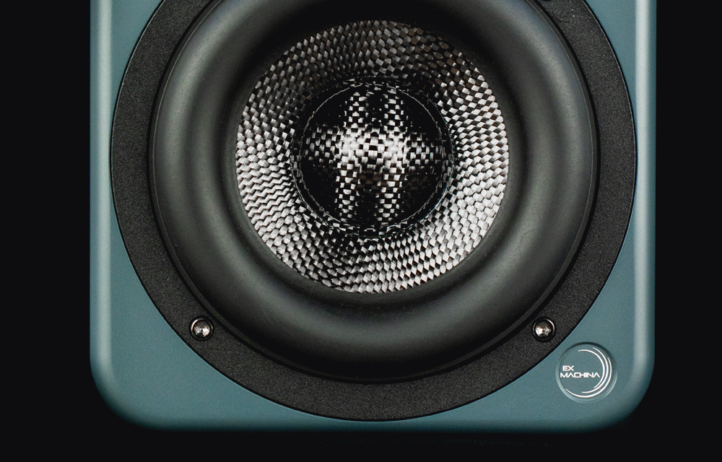

Driver Technology
Poseidon uses a custom Epique MMAG architecture 16cm subwoofer engineered specifically for this application. The 14.7mm of linear excursion in each direction delivers serious low-frequency capability from a compact driver – more excursion than the 9″ drivers in our previous generation Pulsars.
When integrated with Selene via zero-phase LR4 crossover at 150Hz, the system reaches 50Hz linear with F6 at 35Hz. The driver delivers 98dB continuous @ 50Hz from a 6.5″ cube enclosure. Think of it like adding the foundation a compact monitor can’t provide on its own – the two working together deliver full-range accuracy from a surprisingly small footprint.
System Integration
Each Poseidon is measured and calibrated individually before the complete Selene + Poseidon system receives coordinated calibration. The EXCore DSP applies digital crossovers and time alignment to ensure seamless integration across all crossover points. The result is a system that operates as a unified 3-way, not separate components sharing a room.
Because Poseidon is powered by Selene’s EXCore and receives its calibration from the same DSP, system updates can be applied over-the-air as we refine our measurement processes.
PERFORMANCE (AS INTEGRATED SYSTEM WITH SELENE)
System Frequency Response: ±1.5dB 50Hz – 30kHz (linear to 50Hz)
System Low Frequency Extension: F6 at 35Hz
Poseidon Continuous SPL @ 50Hz: 98dB per driver
System Maximum SPL @ 1m: 106dB @ 1kHz
Integration Crossover: 150Hz zero-phase LR4 digital
PHYSICAL
Dimensions: 165mm H x 160mm D x 165mm W (6.5″ cube)
Weight: 6.4kg (14 lbs) per subwoofer

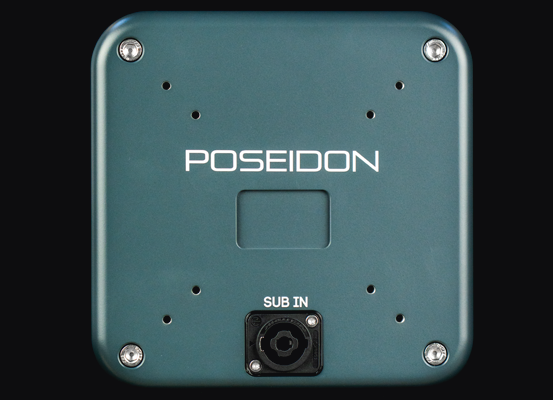

Mounting: Integral hard points, 100×100 or 75×75 MIS-D VESA (M4 fasteners)
Front and rear baffles: 12mm solid aluminum
COMPATIBILITY
Designed exclusively for Selene integration
Requires Selene EXCore for operation
WARRANTY
6 years
